KEY FEATURES
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night
- Smart IR
- Up to 20m IR distance
- IP66 weatherproof

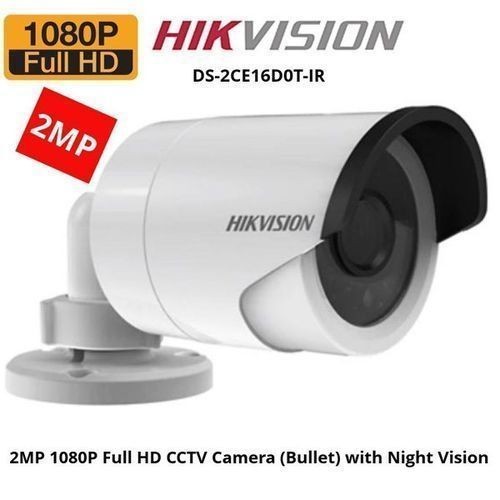

CCTV HIKVISION Camera | ||
---|---|---|
Image Sensor: | 2MP CMOS Image Sensor | |
Signal System: | PAL/NTSC | |
Effective Pixels: | 1920(H)*1080(V) | |
Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
Lens: | 2.8mm, 3.6mm, 6mm optional | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° | |
Day& Night: | IR cut filter with auto switch | |
Video Frame Rate: | 1080p@25fps/1080p@30fps | |
HD Video Output: | 1 Analog HD output | |
Synchronization: | Internal Synchronization | |
S/N Ratio: | More than 62 dB |
General | ||
---|---|---|
Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) | |
Power Supply: | 12 VDC±15% | |
Power Consumption: | Max. 4W | |
Weather Proof: | IP66 | |
IR Range: | Up to 20m | |
Dimension: | Φ70×149.5 mm (Φ2.76” ×5.89”) | |
Weight: Warranty: Installation: | 400 g It comes with 1 year warranty. It is easy to install, comes with wall plugs and screws. it is mainly used for outdoor areas such as boundary walls |
