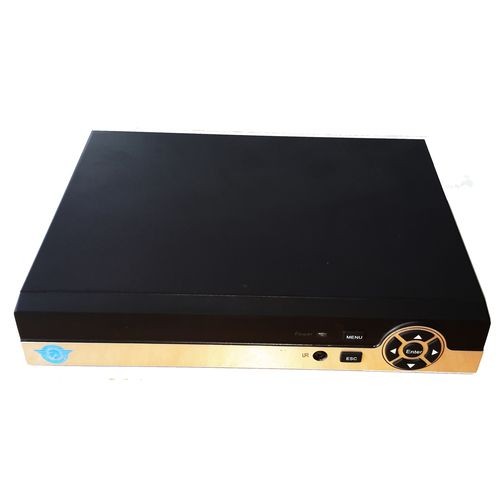

(4) Four (4) Channel DVR capable of real-time full screen viewing and recording by four cameras. It has USB Port, LAN Port, HD-OUT Port and VGA Port. Has Video and Audio input and output capability. Video Compression: H.264
· Analog and HD-TVI video input: 4-ch, BNC interface (1.0Vp-p, 75 Ω)
· Supports the following camera types: 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
· IP Video Input: 1-ch 1080P
· Video Input Interface: BNC
· Audio Compression: G.711u
· Two-way Audio
The DVR:
· Has H.264 & Dual-stream video compression
· Supports HD-TVI/analog/IP cameras (XVR)
· Supports both HD-TVI and analog cameras with adaptive access
· Full channel@1080P resolution real-time recording
· Long transmission distance over coax cable
· Support up to 4-channel synchronous playback at 1080P resolution
